Electronically controlled variable attenuators

Alain DESIRE

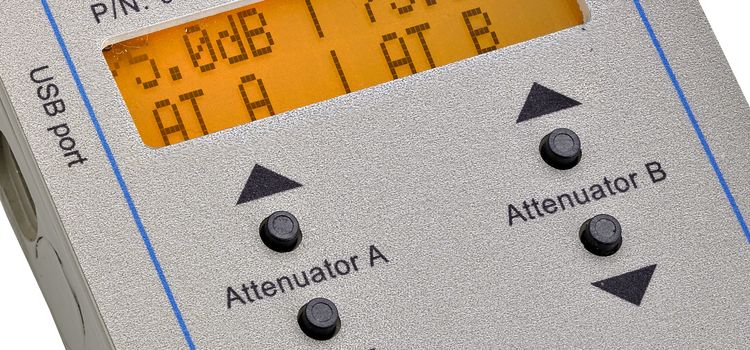

Produits4HYTEM offers a range of electronically controlled variable attenuators

  • With or without display
  • From 20 MHz to 40 GHz (NEW)
  • 62 or 93 dB (110dB in development) up to 6 GHz, 31.5dB up to 40 GHz
  • Control : manual, USB, or TTL (depending on version)
Part NumberFrequency bandwidthAttenuation rangeRF ConnectorsMax input powerControlDisplay
03.02.393700-2700 MHz93 dBSMA female / SMA female+24 dBmTTLN/A
03.02.394700-2700 MHz62,5 dBSMA female / SMA female+24 dBmTTLN/A
03.02.444700-2700 MHz93 dBSMA female / SMA male+24 dBmTTLN/A
03.02.464380-6000 MHz93 dBSMA female / SMA female+24 dBmTTLN/A
03.02.485380-6000 MHz93 dBSMA female / SMA male+24 dBmTTLN/A
03.02.49980-1000 MHz93 dBSMA female (x 2)+24 dBmManual / USB / SoftwareLCD
03.02.501380-6000 MHz93 dBSMA female (x 2)+24 dBmManual / USB / SoftwareLCD
03.02.500380-3000 MHz93 dBSMA female (x 2)+24 dBmManual / USB / SoftwareLCD
03.02.50880-1000 MHz2 x 93 dBSMA female (x 4)+24 dBmManual / USB / SoftwareLCD
03.02.509380-3000 MHz2 x 93 dBSMA female (x 4)+24 dBmManual / USB / SoftwareLCD
03.02.510380-6000 MHz2 x 93 dBSMA female (x 4)+24 dBmManual / USB / SoftwareLCD
03.02.518380-3000 MHz93 dBSMA female / SMA female+24 dBmTTLN/A
03.02.519380-3000 MHz93 dBSMA female / SMA male+24 dBmTTLN/A
03.02.53730-560 MHz85 dBSMA male / SMA female+24 dBmTTLN/A
03.02.577100MHz-30GHz31 dB2,92mm female (x 2)+24 dBmManual / USB / SoftwareOLED
03.02.61120-500 MHz93 dBSMA female (x 2)+24 dBmManual / USB / SoftwareLCD
03.02.62820-500 MHz2 x 93 dBSMA female (x 4)+24 dBmManual / USB / SoftwareLCD
03.02.650100MHz-18GHz31 dBSMA female (x 2)+24 dBmManual / USB / SoftwareOLED
03.02.762100MHz-40GHz31,5 dB2,4mm female (x 2)In : +24 dBm / Out : +15dBmManual / USB / SoftwareOLED
08.02.37650 - 2700 MHz75 dBSMA female (x 2)+24 dBmManual / USB / SoftwareLCD
08.02.39650 - 2700 MHz2 x 75 dBSMA female (x 4)+24 dBmManual / USB / SoftwareLCD
